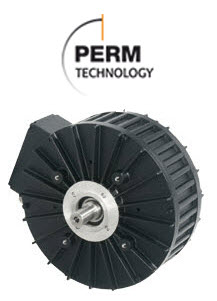

Permanently Excited Synchronous Motors with Air- or Water-Cooling

The synchronous motors of the type PMS are designed for a range of power from 0,5 to 30 kW and a range of voltage from 24 to 96 V DC with battery operation or 110 to 400 V AC with electric supply. They are equipped with air- or water-cooling, without sensor, with integrated hall sensors or transmitters. Complete drives with gearing and added break as well as compact fitting solutions are supplied on request

Made in Germany

Overview Synchronous Motors

Fitting instruction PMS Motors

Range of Application:	Technology Advantages:
Scooters Boats Caddies Electric vehicles Cleaning vehicles Turf machines Forklift Rehab vehicles Industrial applications	High efficiency Low current consumption High torque Battery saving Digital activation Flat design Compact dimension Low efficiency weight

Type	Continuous power	Range of voltage	Range of speeds	Documents
PMS 080	250 W – 1,5 kW	24 – 96 V DC 110 – 440 V AC	1000 – 6000 1/min	Technical Data Engineering Drawing
PMS 100	1,1 kW – 3 kW (air-cooled)	24 – 96 V DC 110 – 440 V AC	1000 – 6000 1/min	Technical Data Engineering Drawing
PMS 120	2,2 kW – 7,0 kW (air-cooled) -11,0 kW (water-cooled)	48 – 300 V DC 110 – 440 V AC	1000 – 6000 1/min	Technical Data (air-cooled) Engineering Drawing (air-cooled) Technical Data (water-cooled) Engineering Drawing (water-cooled)
PMS 150	4,8 kW – 14,0 kW (air-cooled) -20,0 kW (water-cooled)	48 – 300 V DC 110 – 440 V AC	1000 – 6000 1/min	Technical Data (air-cooled) Engineering Drawing (air-cooled) Technical Data (water-cooled) Engineering Drawing (water-cooled)
PMS 156	6,5 kW – 18,0 kW (air-cooled) -30,0 kW (water-cooled)	48 – 300 V DC 110 – 440 V AC	1000 – 6000 1/min	Technical Data (air-cooled) Engineering Drawing (air-cooled) Technical Data (water-cooled) Engineering Drawing (water-cooled)
